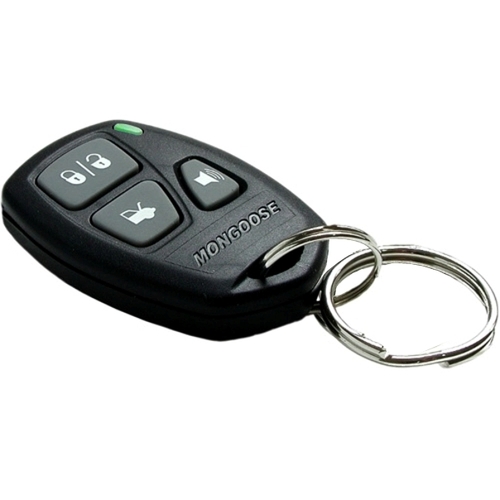

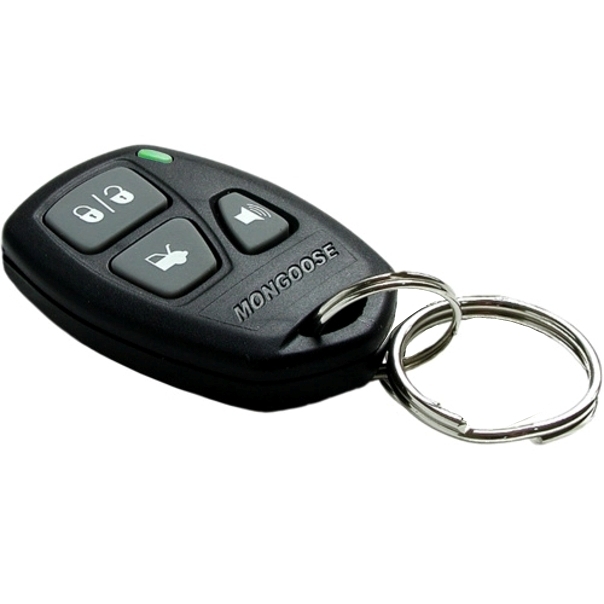

Part# MRC83G - Green LED - 303Mhz

Not interchangable with each other models of M80.

Replacement plastic case: Part# 242183

A new remote has to be memorised into your security system for it to operate - this is called 'code learning'. The coding instructions can be found in your owners manual (which you can download from our website if yours is misplaced) or is detailed below.

To learn new remotes to M80 model:

1. Disarm by existing remote, or use the override
2. Open the drivers door and leave open
3. Turn the ignition ON/OFF 3 times - siren chirps
4. Press arm button on first remote (siren chirps)
5. Press arm button on second remote (siren chirps)
6. Repeat for any other remotes
7. Wait 10 seconds for learning process to complete

Note When learning a new replacement or additional remote, the original must be re-learnt or they will be erased from memory and will not operate the system.

FOR SOME OLDER SYSTEM OF M80 you  may need to use the slightly different process below

1. Disarm the system

2. Open the drivers door and leave open

3. Within 15 seconds, turn the ignition ON/OFF 3 times (ignition remains off)

4. Thesiren will chirp 3 times, the indicators will flash 3 times to confirm you have entered remote code learning mode. (no chirps on M80i unless siren/horn connected)

5. Press button one on the first remote– siren will chirp once as confirmation of reception  Pressbutton one on the second remote– siren will chirp twice as confirmation of reception

6. Repeat for up to four remotes (siren will chirp 3 times for the third and 4 times for the fourth).

7. Leave the system for 10 seconds or turn the ignition on to end code learning mode. This is confirmed by three fast chirps and light flashes.

NOTE: When learning a new replacement or additional remote, the original remote(s) must be re-learnt or they will be erased from memory and will not operate this system.

To delete a remote from memory: If you lose a remote, it is recommended that it is deleted from memory so someone else cannot use it. Enter learning mode as detailed above and memorise the existing remote(s) once. The lost remote is now deleted. When a replacement is obtained, learn both the existing and new remotes into memory as detailed above.
