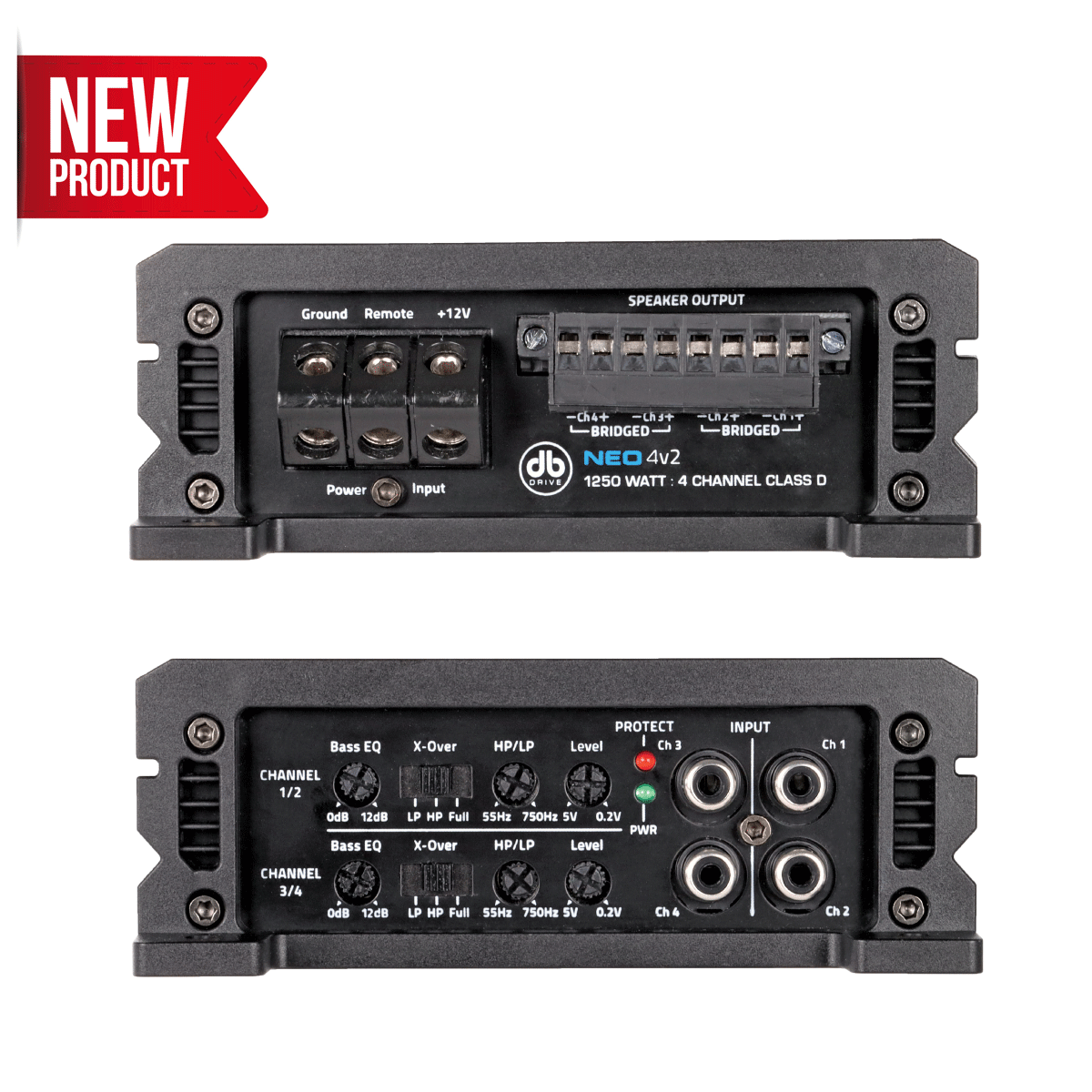

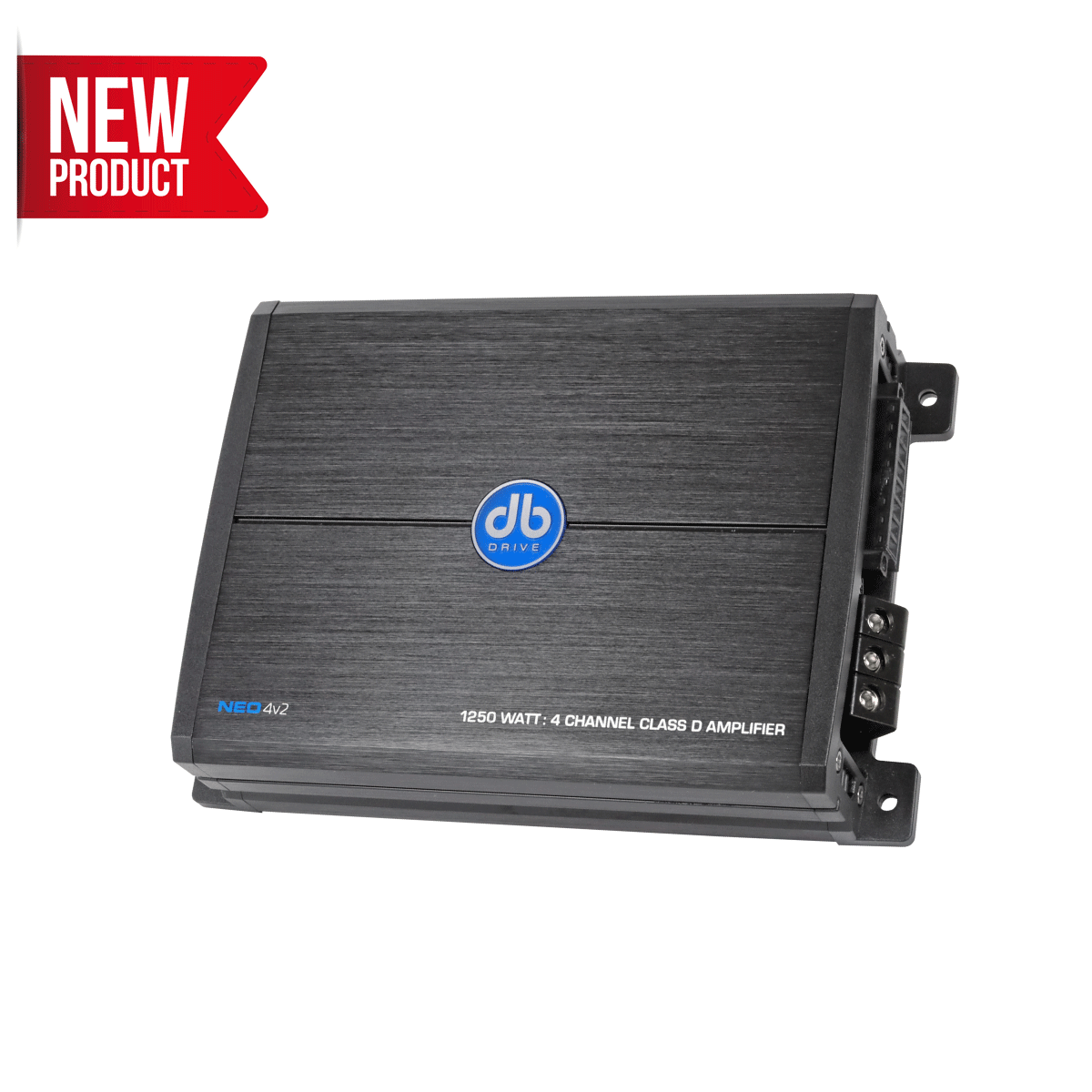

NE04v2 - 4 CHANNEL AMP
Class D 4 Channel Amplifier
Price:
$399.00
In Stock
The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.
- 4 Channel Full Range Class D Technology
- 2Ω Mono load Capability
- Amphibnious grade conformal coating on PCB
- Audiophile Grade RCA connectors
- Variable 12dB High/Low-Pass Crossover Filters
- Bridgeable Outputs @ 4Ω Load
- Double Sided Circuit tablet
- Compatible with any 4/2Ω Loudspeaker
| Length (A) | 6.8″ / (175mm) |
| Width (B) | 5.3” / (135mm) |
| Height (C) | 1.88” / (48mm) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Rated Power @ 14.4 Volts | |
| Dynamic Power Handling | 4 x 125 Watts @ 4Ω |
| 4 x 250 Watts @ 2Ω
2 x 500 Watts @ 4Ω Bridged
|
| PARAMETERS | |
|---|---|
| THD (100Hz @ 1Ω) | 0.04% |
| Bandwidth (-3 dB) | 18Hz – 22KHz |
| Damping Factor (1KHz @ 4Ω) | 100 |
| S/N ratio (as weighted @ 1 Volt) | 99db |
| Input Sensitivity | 0.20V – 5.0V RMS |
| Minimum Load Impedance | 2Ω |
| Input | Pre in RCA |
| Channel 1-2 filter Range | 55Hz – 750Hz |
| Channel 3-4 filter Range | 55Hz – 750Hz |
| SKU | NE04 |
| Brand | DB Drive |
