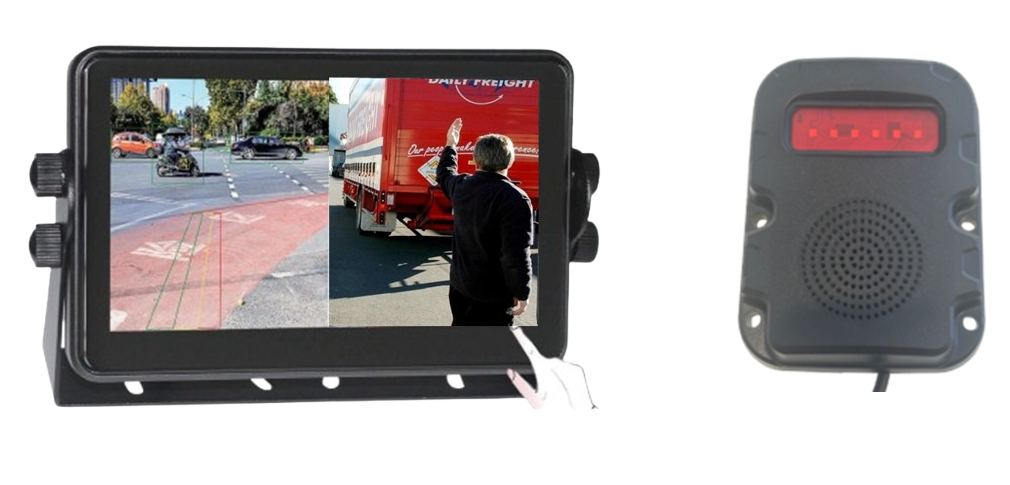

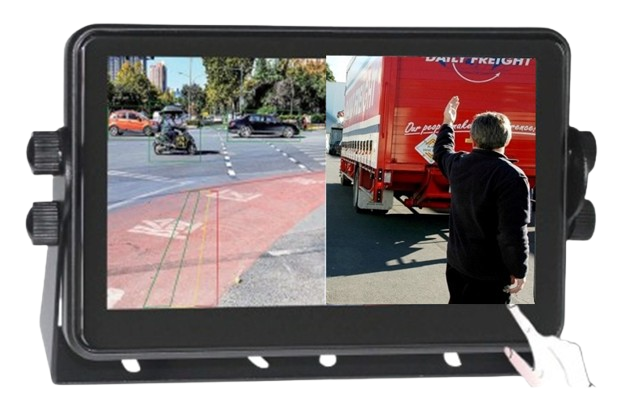

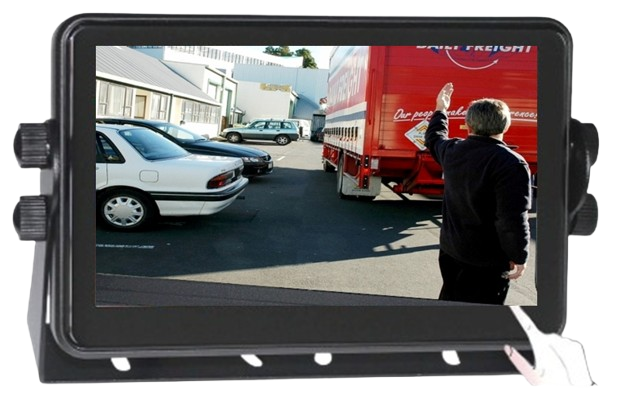

The Mongoose MM7BSD2A  AHD 7" Touch screen monitor and BSDA external Audible and Visual warning device allows you to connect up to 2 Cameras and an external BSD warning device for external pedestrian safety. It will allow you to see on or both cameras on screen at the same time.

The monoitor can be used just as standard monitor and you can also record what the cameras see diredtly a Micro SD card upto128GB. ( SD card not included). The AI monitor can also be set up to help detect other vehicles and objects in the cameras detection zones.  This can assist the driver awareness of their environment especially in potential driver BLIND SIDE ZONES.

It has an easy to use Menu, that allows the user to tun on/off AI BSD features as well as customers user set up.

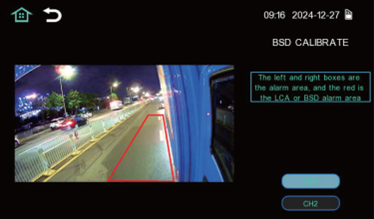

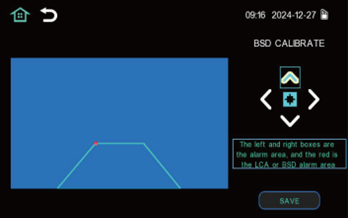

if you choose to use the AI Blind Side Detection you can access and even set up you own specific zones via the touch screen

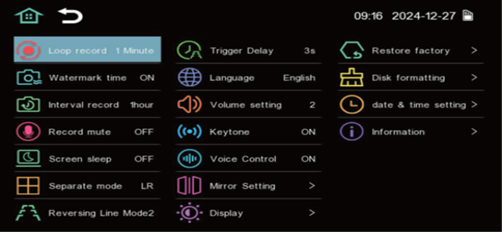

Below is a list of Menu Settings

1. Loop record – 1,2,3 minutes
2. Water mark time – on, off
3. Interval recording – 1hr, 6hr, 24hr, off,
4. Record mute – on, off
5. Screen sleep – 10s, 30s, 60s, off
6. Separate mode (cam positions) – Left/right, up/down
7. Reverse line – mode 1 (narrow), mode 2 (wider), mode 3 (widest), off
8. Trigger delay (reverse camera) – 3s, 6s, 9s, off
9. Language – English, Chinese simplified, Chinese traditional, Japanese, Korean
10. Volume setting – 0, 1, 2, 3, 4
11. Key tone (button noise) – on, off
12. Voice control – on, off **this feature is not available**
13. Mirror setting - CH1 slider off/on, CH2 slider off/on
14. Restore factory – factory reset
15. Date and time settings – Y/MM/DD, H/M
16. Display – sliders for brightness, contrast and saturation
17. Information – version info

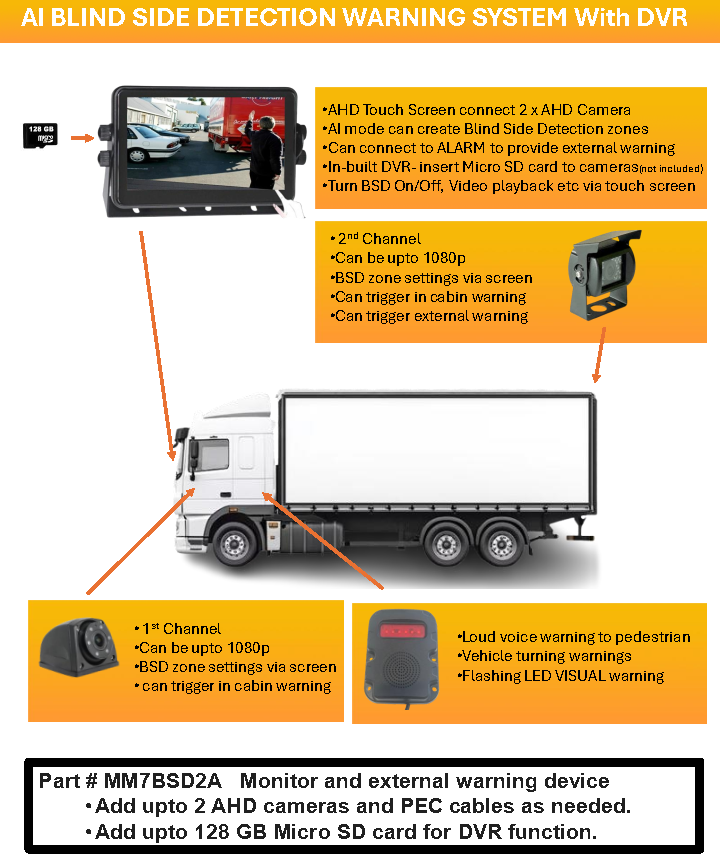

The MM7BSD2A monitor can connect upto 2 Cameras via the harness that uses the 4PIN AVI style plugs that is used on all our heavy duty camera range.

For best results you should use AHD cameras 720/1080 resolution. Check out our AHD heavy duty camera range.

Once you select you camera then just need to work out what lenght of camera cable you need to run from Camera to connect to monitor. Our PEC camera cables come in metre lengths of 1,5,7.5,10,15 and 20.

The External Audible and Visual Warning unit provides warning to pedestrains based on how you set up the warnings. You can set them up based on Camera 1, Camera 2 and set you own BSD zones.

You can also connect to the LEFT AND RIGHT TURN signals so each time you Vehicles is turning it can provide and external warning.

If you want to purchase the Monitor and Warning unit together you can order part number MM7BSD2A



Our range of products can help enhance safety with your personal or work vehicle. Our products are driving aids only. As a driver you must always be responsible and check your surroundings to ensure you are operating your vehicles safely.

Mongoose cannot always guarantee 100% accuracy or performance in all conditions. The technology may not detect all objects.  You should not rely solely on this system as it is not intended to replace driver awareness and responsibilities.

A good camera and monitor are a great driving aid to help when driving or reversing your vehicle.

Our range of products can help you enhance your safety with your personal or work vehicle.

All our products are design to be installed to asisst you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.
