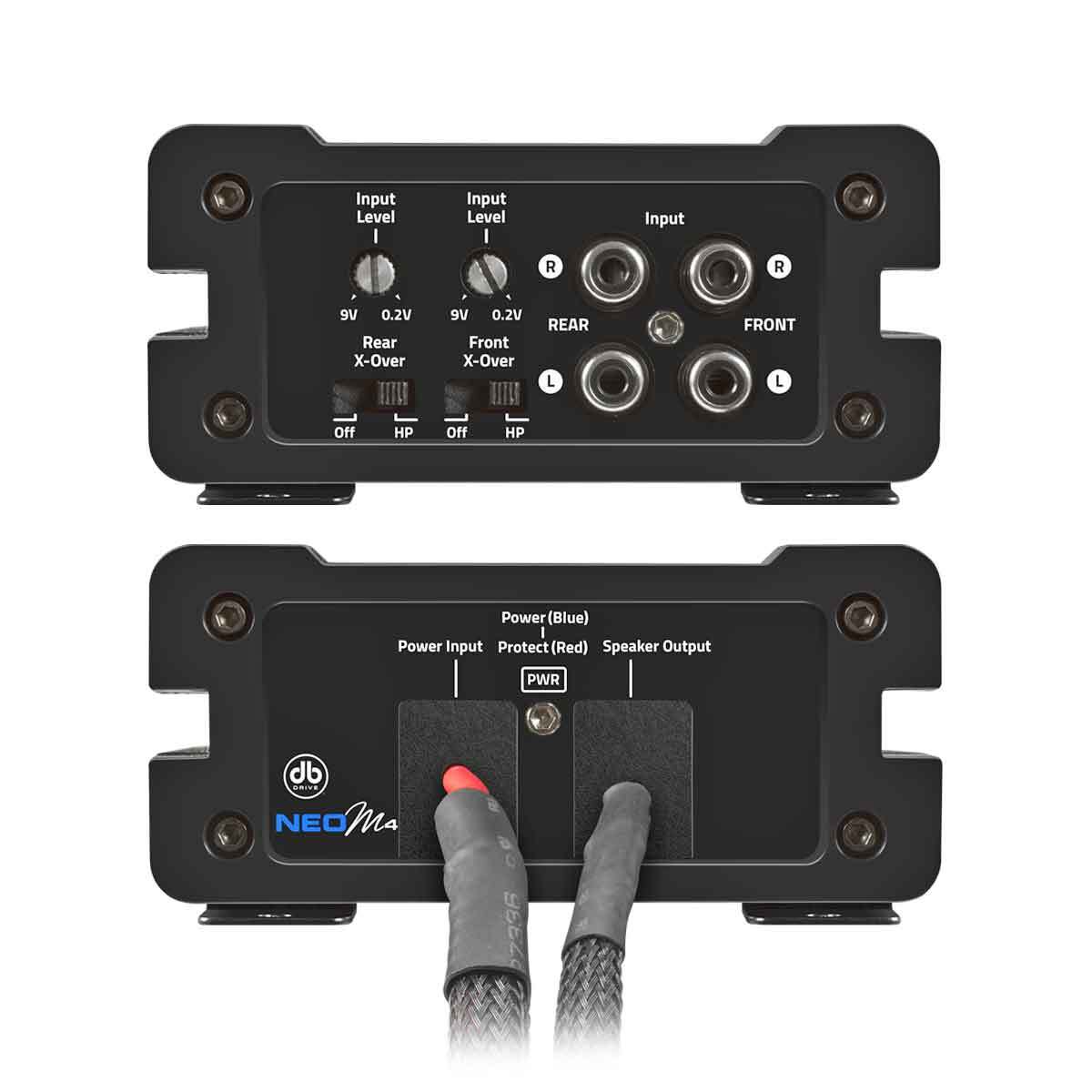

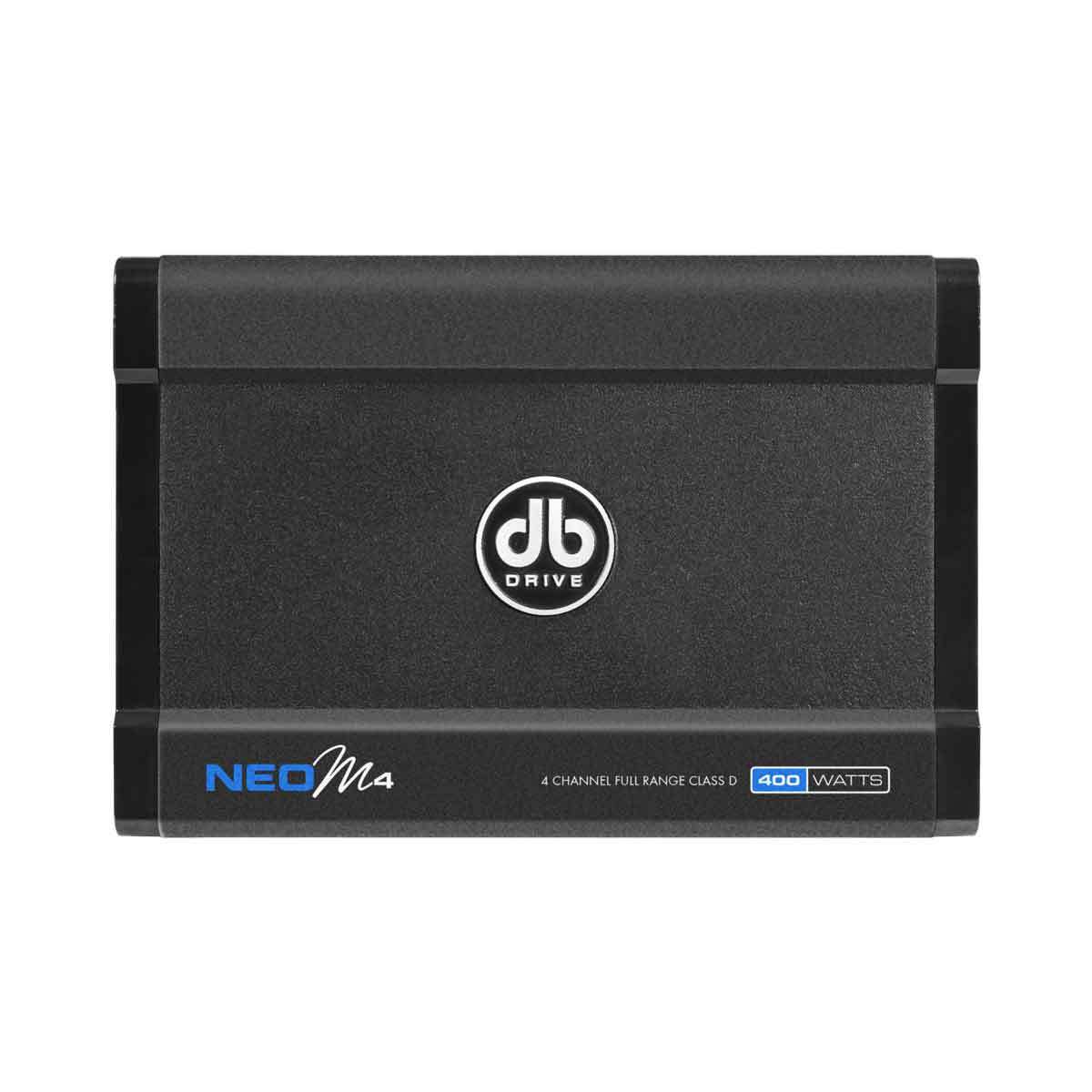

NEOM4

4 Channel Full Range Class D Amplifier / 400 Watts

  • 4 Channel Class D Full Range Technology
  • 2Ω Stereo load Capability
  • Audiophile Grade Nickel Plated RCA connectors
  • 12db High-Pass crossover filter
  • Marine Grade Conformal Coated Double Sided PCB
  • Compatible with any 4/2Ω Loudspeaker
SPECIFICATIONS
Rated @14 Volts
  • 4 x 50 Watts @ 4Ω
  • 4 x 100 Watts @ 2Ω
THD (100Hz @ 1Ω)     0.04%
Bandwidth (-3 dB)     18Hz – 22KHz
Damping Factor (1KHz @ 4Ω)     100
S/N ratio (as weighted @ 1 Volt)     99db
Input Sensitivity     .20V – 5.0V RMS
Minimum Load Impedance     2Ω
Low-Pass Filter Range     50Hz – 150Hz
Sub-Sonic Filter Range     15Hz – 50Hz

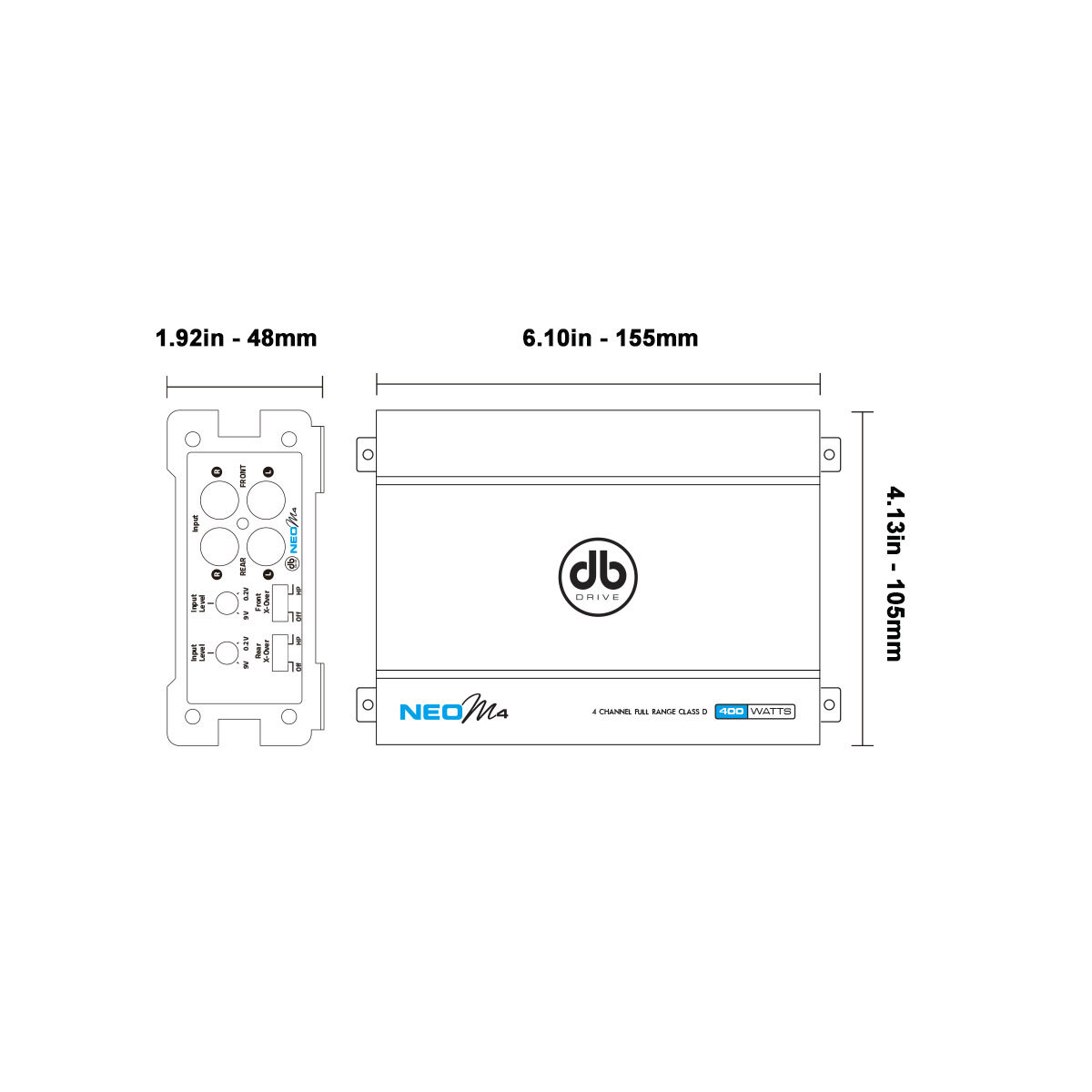

DIMENSIONS
Length 6.10″ / 155 mm
Width 4.13″ / 105 mm
Height 1.92″ / 48 mm
SKU NEO-M4
Brand DB Drive
