MC101 AI AHD Camera

Description Specifications Features Reviews (0)

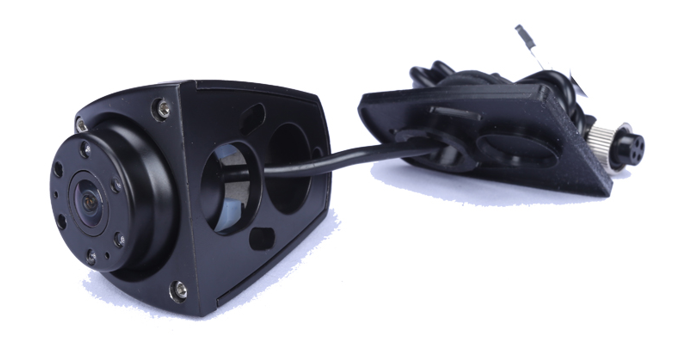

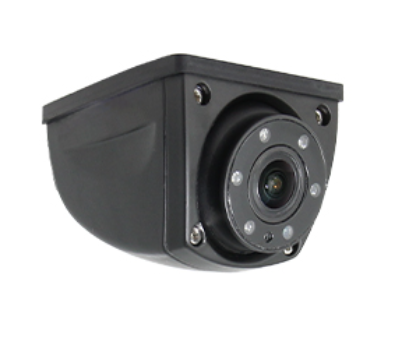

MC101AI – Smart 720p AI Side-Vision Camera

Meet the MC101AI, a ruggedized side-vision camera built to bring intelligent safety and situational awareness to commercial vehicles and industrial equipment.

The MC101AI combines edge AI intelligence with rugged automotive-grade design—ideal for enhancing situational awareness and safety in commercial fleets, industrial vehicles, agricultural machinery, and more. Its on-camera detection, night-time clarity, and durable build ensure reliable blind-spot and side-vision monitoring in the most demanding environments.

Stay Ahead with Smart Detection
Equipped with a built-in AI processor, the MC101AI detects pedestrians, cyclists, and vehicles in real time—sending audio/video alerts directly to the vehicle’s monitor or onboard system.

Clear, Consistent Visibility
Optimized for side- and rear-view roles, the 130° wide-angle lens captures broad coverage in sharp HD. Customizable mirror mode ensures perfect image orientation for either side of the vehicle.

Reliable Performance, Day or Night
Featuring a low-light IR night sensor and integrated IR LEDs, the camera delivers up to ~8 m visibility in complete darkness.

Built for Tough Conditions
With IP69K certification, this camera withstands high-pressure cleans and severe dust—perfect for heavy-duty trucks, buses, or farming machinery.

Seamless Integration
Powered by standard DC 12 V (9–24 V compatible) and connecting via a rugged 4-pin aviation plug, MC101AI integrates effortlessly with AHD systems and monitor setups.

Designed for Easy Installation
The compact, rotatable housing allows flexible positioning and mirror image adjustment without external tools.

Our range of products can help you enhance your safety with your personal or work vehicle.

All our products are design to be installed to asisst you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Mounting Type	Surface mount U-bracket
Viewing Type	Reverse
Lens Angle Degree	Horizontal: 130° Vertical: 74° Diagonal: 150°
Image sensor	SC1336
Resolution	1280*720p
Signal System	PAL
Waterproof level	IP69K
Vibration Rating	10G
Working voltage	12V
Minimum illumination	0.1 Lux
Number of IR LEDs	6PCS
Built in Microphone	YES
Connection Type	4pin aviation connector
Cable length	600MM
Dimensions	6752.342.5mm
Housing color	Black
Working Temperature	–20℃ ~ 70℃, RH95%MAX.
Storage Temperature	–40℃ ~ 80℃, RH95%MAX.
Inclusion	3x screws, 1xhexagon wrench,

SKU	MC101AI
Brand	mongoose

Key Features

Premium 720p HD Video (1280×720 AHD/CVBS)
Delivers crisp, high-resolution footage
On-Camera Edge AI Processing
Equipped with an embedded AI engine for real-time detection of pedestrians and vehicles, reducing latency and bandwidth by processing directly on the device.
Wide 130° Lens + Mirror Mode
Broad field of view ideal for side or blind-spot coverage, with selectable mirror/normal image orientation for versatile mounting.
Rugged IP69K Housing
Fully sealed against dust and high-pressure washdowns, suitable for extreme outdoor and industrial environments.
Night Vision with IR Sensor
Automatically activates IR LEDs at 0 lux, offering clear night shots up to ~8 m—perfect for full-day safety monitoring.
Built-in Audio
Includes a microphone and audio output, enabling voice alerts, two-way audio, or in-vehicle communication.
Robust Operating Conditions
Handles harsh weather and operating temps from -20 °C to +70 °C, with durability against mechanical vibration (up to ~5 G).
Flexible Power & Connector
Runs on 12 V DC (often adjustable to 9–24 V) with a waterproof 4-pin aviation plug for durable vehicle integration.
