AHD Heavy duty camera with radar sensor

Description Specifications Features Reviews (0)

The MC10R is an all‑in‑one industrial-grade radar–camera fusion surveillance module, combining a wide-angle 1080p HD camera with a high-performance mmWave radar sensor. Designed for demanding outdoor environments, it delivers accurate motion detection, visual confirmation, and real-time audio—all in a rugged, IP69K-rated housing.

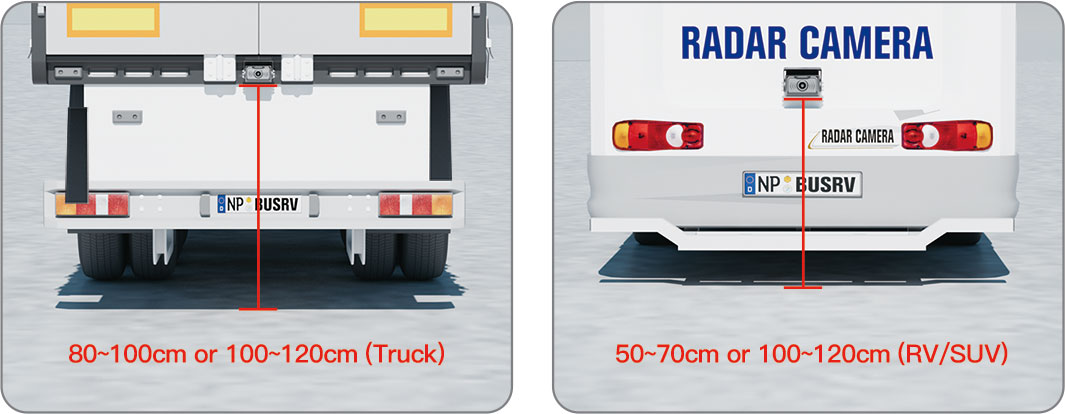

Designed to be to be installed on rear of your vehicle to allow camera and sensor to pick up objects.Install height approx 50cm to 120cm above road level. Adjusting to get best results for your vehicle.

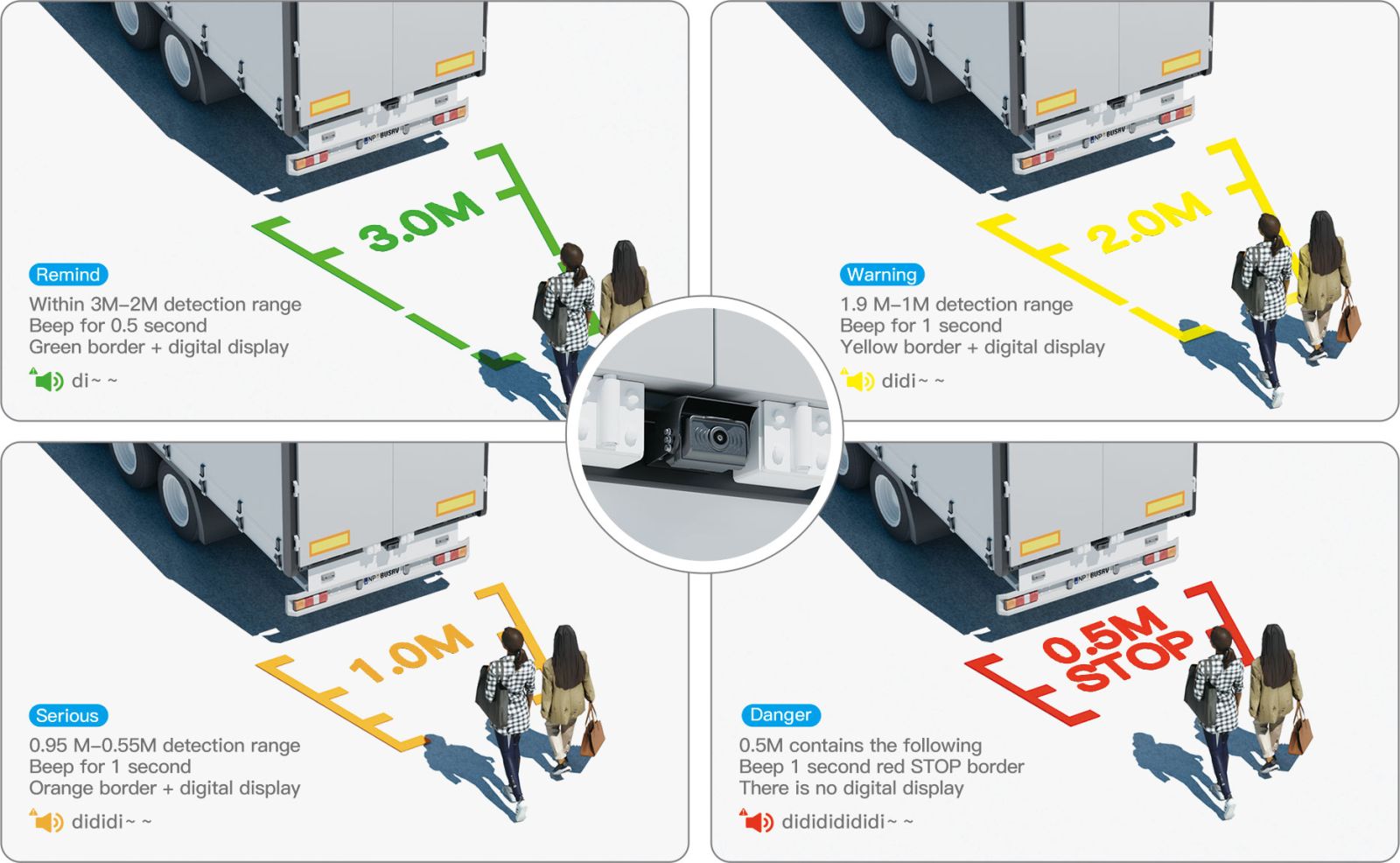

As you reverse it will give a visual and audio warning when it detects objects in the cameras sensor range.

Our range of products can help you enhance your safety with your personal or work vehicle.

All our products are design to be installed to asisst you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Mounting Type	Surface mount U-bracket
Viewing Type	Reverse
Lens Angle Degree	Horizontal: 130° Vertical: 74° Diagonal: 150°
Image sensor	SC223A 2M“CMOS
Resolution	1920*1080p
Signal System	PAL
Waterproof level	IP69K
Vibration Rating	10G
Working voltage	12V
Minimum illumination	0.1 Lux
Number of IR LEDs	0
Built in Microphone	YES
Connection Type	4pin aviation connector
Cable length	600MM
Dimensions	767188mm
Housing color	Grey
Working Temperature	–20℃ ~ 70℃, RH95%MAX.
Storage Temperature	–40℃ ~ 80℃, RH95%MAX.
Inclusion	2x4*12MM screws

SKU	MC10R
Brand	mongoose

Key Features

Integrated Radar + Camera Fusion
- 1080p CMOS camera (SC223A) with 130° horizontal, 74° vertical, and 150° diagonal viewing angles
- mmWave radar provides motion detection and range estimation (exact radar spec varies by OEM)
Rugged Construction
- Waterproof IP69K housing
- Built to survive vibrations up to 10 G
- Durable grey U-bracket for surface mounting (reverse viewing orientation)
Durability & Environment
- Works in harsh temperatures: –20 °C to 70 °C (operational), –40 °C to 80 °C (storage), up to RH 95%
- Includes 4-pin aviation power/data connector and 600 mm cable
Imaging & Audio
- 2MP (1920×1080) resolution; low-light sensitivity down to 0.1 Lux
- Built-in microphone for on-scene audio capture
Plug‑and‑Play Installation
- Powered via 12 V DC
- Comes with two 4×12 mm mounting screws
- Compact dimensions: 76 × 71 × 88 mm
