MC102AI

Description Specifications Features Reviews (0)

The MC102AI-style side-view camera delivers a rugged, intelligent, and feature-rich solution for vehicle blind-spot visibility. It combines 720P resolution, AI detection, night vision, audio alerts, mirror-mode flexibility, and extreme weather protection in a compact IP69K housing—perfect for heavy vehicles operating in demanding environments.

The MC102AI combines edge AI intelligence with rugged automotive-grade design—ideal for enhancing situational awareness and safety in commercial fleets, industrial vehicles, agricultural machinery, and more. Its on-camera detection, night-time clarity, and durable build ensure reliable blind-spot and side-vision monitoring in the most demanding environments.

Stay Ahead with Smart Detection
Equipped with a built-in AI processor, the MC102AI detects pedestrians, cyclists, and vehicles in real time—sending audio/video alerts directly to the vehicle’s monitor or onboard system.

Clear, Consistent Visibility
Optimized for side- and rear-view roles, the lens captures broad coverage in sharp HD. Customizable mirror mode ensures perfect image orientation for either side of the vehicle.

Reliable Performance, Day or Night
Featuring a low-light IR night sensor and integrated IR LEDs, the camera delivers up to ~8 m visibility in complete darkness.

Built for Tough Conditions

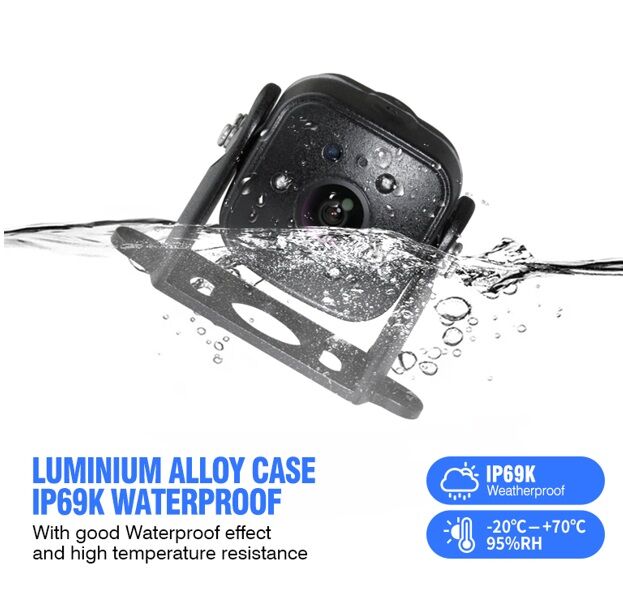

With IP69K certification, this camera withstands high-pressure cleans and severe dust—perfect for heavy-duty trucks, buses, or farming machinery.

Seamless Integration
Powered by standard DC 12 V and connecting via a rugged 4-pin aviation plug, MC102AI integrates effortlessly with AHD systems and monitor setups.

Designed for Easy Installation

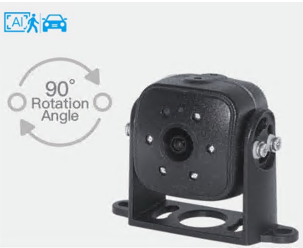

The compact, rotatable housing allows flexible positioning and mirror image adjustment without external tools.

Our range of products can help you enhance your safety with your personal or work vehicle.

All our products are design to be installed to asisst you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Mounting Type	Surface mount U-bracket
Viewing Type	Reverse
Lens Angle Degree	Horizontal: 130° Vertical: 74° Diagonal: 150°
Image sensor	SC1336
Resolution	1280*720p
Signal System	PAL
Waterproof level	IP69K
Vibration Rating	10G
Working voltage	12V
Minimum illumination	0.1 Lux
Number of IR LEDs	5PCS
Built in Microphone	YES
Connection Type	4pin aviation connector
Cable length	600MM
Dimensions	733961mm
Housing color	Black
Working Temperature	–20℃ ~ 70℃, RH95%MAX.
Storage Temperature	–40℃ ~ 80℃, RH95%MAX.
Inclusion	2x4*12MM screws

SKU	MC102AI
Brand	mongoose

Key Features

- On-Device Object Detection

Real-time classification of people, vehicles, or other objects—enabling smart alert triggers without needing a central server.

- Intrusion & Perimeter Analytics

Ability to alert when objects cross designated Areas of Interest (AOI) or lines, ideal for perimeter security.

- Imaging & Optics

Wide-angle lens with 130° horizontal, 74° vertical, 150° diagonal FOV—excellent for reversing, surveillance, or situational awareness.

- Low-Light & IR Illumination

Visible light sensitivity down to 0.1 Lux.
5 IR LEDs for clear monochrome performance in complete darkness.

- Rugged Durability

IP69K rating for total protection against dust and high-pressure, high-temperature water ingress.
Shock/vibration tolerance up to 10 G, well-suited for vehicle and heavy-duty industrial usage.
Wide operating range: –20 °C to 70 °C (95% RH), and –40 °C to 80 °C for storage.

- Audio & Connectivity

Built-in microphone offers synchronized audio for enhanced context.
Standard PAL analogue video output, easily compatible with legacy systems.
Powered via 12 V DC through a secure 4‑pin aviation connector, consolidating power, video, and audio signals.
Includes a 600 mm cable for flexible routing.

- Compact Installation

Surface‑mount U‑bracket, reverse-view orientation—ideal for vehicle bumpers or walls.
Compact 73 × 39 × 61 mm black enclosure for subtle mounting.
Supplied with 2 × M4×12 mm screws for secure installation.
