DUAL 1080P Heavy Duty Camera

Description Specifications Features Reviews (0)

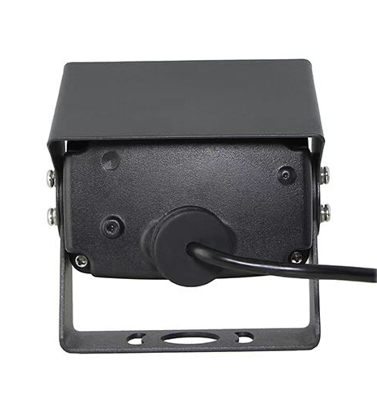

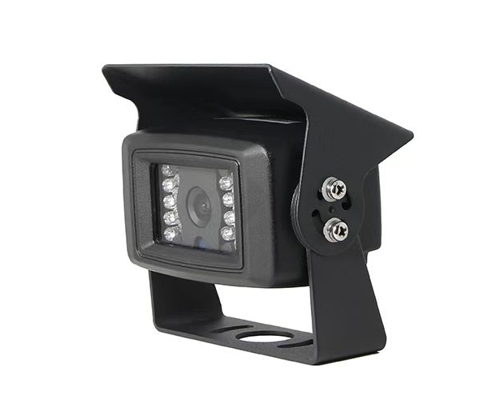

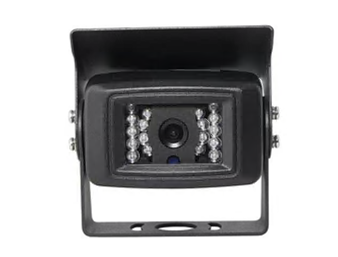

Introducing a rugged AHD surface-mount reverse camera featuring a U-bracket for secure and adjustable positioning on the rear of vehicles. Built with a 1/2.9″ CMOS sensor and delivering Full HD (1920×1080p) resolution via PAL signal, it provides clear, crisp video in day or night. With an IP69K-rated housing, this camera is ready for extreme environments—offering dust-tight protection and resilience under high-temperature, high-pressure washdowns. Ideal for heavy-duty vehicles, trailers, agricultural machinery, and construction equipment.

Our range of products can help you enhance your safety with your personal or work vehicle.

All our products are design to be installed to asisst you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Mounting Type	Surface mount U-bracket
Viewing Type	Reverse
Lens Angle Degree	Horizontal: 100° Vertical: 57° Diagonal: 116°
Image sensor	1/2.9” CMOS
Resolution	1920*1080p
Signal System	PAL
Waterproof level	IP69K
Vibration Rating	10G
Working voltage	12V
Minimum illumination	0.1 Lux
Number of IR LEDs	18PCS
Built in Microphone	YES
Connection Type	4pin aviation connector
Cable length	600mm
Dimensions	978088mm
Housing color	Black
Working Temperature	–20℃ ~ 70℃, RH95%MAX.
Storage Temperature	–40℃ ~ 80℃, RH95%MAX.
Inclusion	1xhexagon wrench,2x4*12MM screws

SKU	MC103
Barcode #	9326270001655
Brand	mongoose

Key Features

Mounting Flexibility – Comes with a U-bracket surface mount, 2 × 4×12 mm screws, and hex wrench for easy installation and precise angle adjustment.
Optimised Viewing – Reverse camera with 100° horizontal, 57° vertical, and 116° diagonal field of view.
Full HD Imaging – 1/2.9″ CMOS sensor produces sharp 1080p video via PAL system.
Night Vision Performance – Equipped with 18 IR LEDs and a low-light threshold of 0.1 Lux for clear vision in darkness.
Built-In Audio – Integrated microphone enables audio alongside video surveillance.
Extreme Weatherproofing – IP69K rating ensures total protection from dust and powerful, high-temperature washdown jets
Durable Against Vibration – Withstands up to 10 G shock and vibration—ideal for rugged terrain use.
Robust Power & Connectivity – Compatible with 12 V systems; uses secure 4-pin aviation connector; includes 600 mm cable.
Compact & Tough Housing – Sized at 97×80×88 mm, finished in durable black metal to blend with vehicle aesthetics.
Wide Temperature Range – Operates from –20 °C to +70 °C (RH ≤ 95%) and stores down to –40 °C up to +80 °C (RH ≤ 95%).
