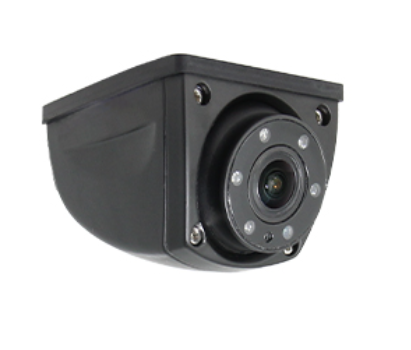

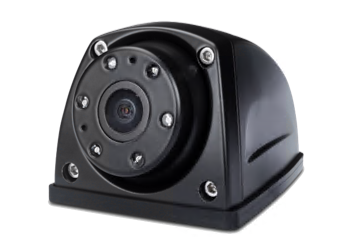

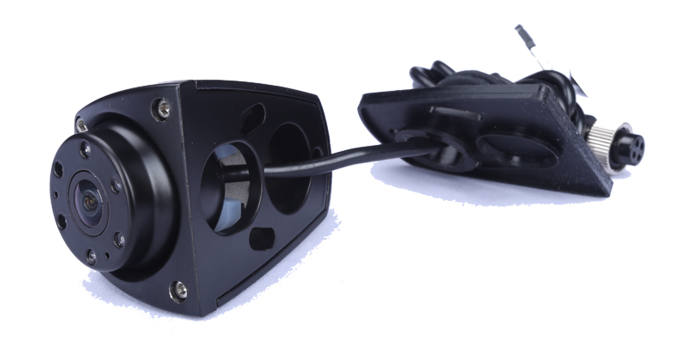

A rugged surface‑mount reverse camera designed for demanding environments. It features a reverse‑lens setup for a wide horizontal view, ideal for vehicle reversing, surveillance, and safety monitoring. Housed in a durable black case and rated IP69K, it withstands powerful water jets and high‑pressure cleaning, making it perfect for industrial, agricultural, or heavy‑duty vehicle applications. It includes a built‑in mic, six IR LEDs for night vision, and a 4‑pin aviation connector for reliable power and video transmission.
Ideal for users needing a robust, high‑definition, surface‑mounted reversing or surveillance camera that withstands harsh environments and provides wide-angle, low-light performance—all with solid audio and easy installation.
Our range of products can help you enhance your safety with your personal or work vehicle.
All our products are design to be installed to asisst you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.
Mounting Type | Surface mount |
Viewing Type | Reverse |
Lens Angle Degree | Horizontal: 130° Vertical: 74° Diagonal: 150° |
Image sensor | 1/2.9” CMOS |
Resolution | 1920*1080p |
Signal System | PAL |
Waterproof level | IP69K |
Vibration Rating | 10G |
Working voltage | 12V |
Minimum illumination | 0.1 Lux |
Number of IR LEDs | 6PCS |
Built in Microphone | YES |
Connection Type | 4pin aviation connector |
Cable length | 600MM |
Dimensions | 67*52.3*42.5mm |
Housing color | Black |
Working Temperature | –20℃ ~ 70℃, RH95%MAX. |
Storage Temperature | –40℃ ~ 80℃, RH95%MAX. |
Inclusion | 3x screws, 1xhexagon wrench, |
SKU | MC101 |
Barcode # | 9326270001655 |
Brand | mongoose |
Key Features
-
Exceptional Image Quality – Full HD 1080p resolution on a PAL signal line ensures crisp, detailed imagery.
-
Wide Field of View – With 130° horizontal and 150° diagonal coverage, it eliminates blind spots
-
Built for Tough Conditions – IP69K rating guarantees protection from high‑pressure and high‑temperature water jets, similar to heavy‑duty reversing cameras
-
Night-Time Clarity – Six IR LEDs and low-light capability (0.1 Lux) deliver reliable night visibility.
-
Sturdy & Stable – Withstands up to 10 G vibration, making it ideal for rough‑terrain vehicles.
-
Easy Installation – Surface‑mount design with included screws and connector simplifies setup.
-
Audio Ready – Integrated mic can capture sound, useful for monitoring rear surroundings.
