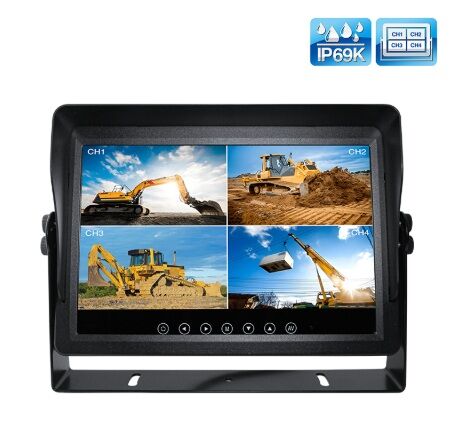

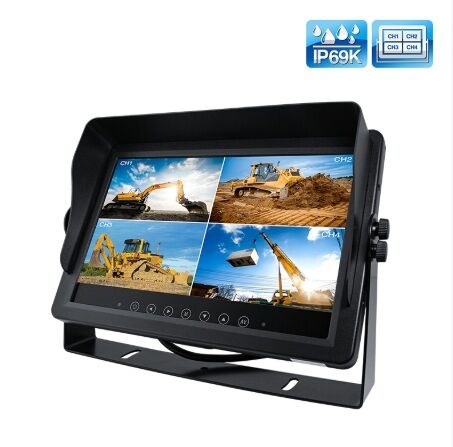

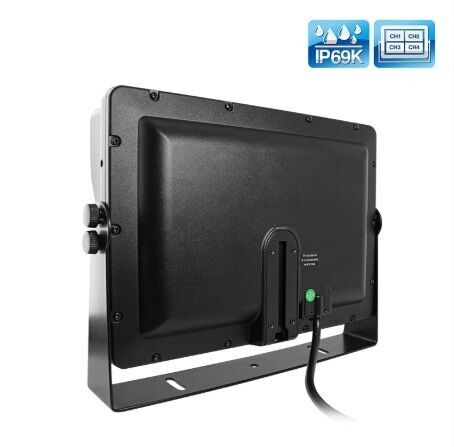

The MM10WQA  is a Weatherproof 12~36-volt 10.1-inch AHD QUAD VIEW colour monitor.

The MM10WQA is a robust 10.1-inch AHD monitor designed for demanding vehicle applications. With an IP69K waterproof rating, it ensures reliable performance in harsh environments. The monitor supports up to 4 video inputs, offering versatile display options, and features a high-resolution 1024x600 screen for clear visuals. Its durable design includes a sunshade and trigger wires for seamless camera integration, making it ideal for trucks, buses, and construction equipment.

This monitor is an excellent choice for enhancing vehicle safety and operational efficiency in demanding conditions.

Our range of products can help you enhance your safety with your personal or work vehicle.

All our products are design to be installed to asisst you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Read More
Screen Ratio 16:9
Back Light 450cd/m2
Resolution 1024*600
Compatible system NTSC & PAL (automatically)
OSD control Color, Brightness, Contrast, Volume,                                                                                                                                                     Language(English, Chinese, Traditional Chinese, Portuguese, French, German,
Russian, Korean, Spanish, Italian, Turkish, Dutch, Japanese)
View angel Hor. L(60) R(60)                                                                                                                                                                     Ver. UP(40) DOWN(60)
Image reversion UP/Down and Left/Right
Power requirement 12-36V DC
Power consumption 5W
Storage temperature -30〜80℃
Working temperature -20℃ to 70℃
Size 263mm*185mm*34mm
Weight 2500g
AV Inputs 4 way video input, 1 way audio input                                                                                                                                              (quad images,1/2/3/4 images optional)
cvbs,720,1080
Number of Trigger and display 4 triggers
Optional functions Built-in speaker, 4 PIN connector suitable
Accessories Power supply cable ,Remote control,
User manual, U-Bracket
Read More
SKU MM10WQA
Brand mongoose
Unit Of Measure ea
  • 10.1" HD digital panel
  • 12~36 volt input
  • 12 volt output to camera(s)
  • 4 AV input switching (4 video inputs one with Audio)
  • 4x  trigger wire for switching when camera onto screen
  • Brightness, contrast, colour controls
  • Built-in sun visor hood
  • Built in Speaker
  • Heavy Duty U Frame mount
  • Key Features:

  • Screen Size & Resolution: 10.1-inch TFT LCD display with a resolution of 1024x600 pixels, offering clear and vibrant visuals.

  • Wide Voltage Range: Operates on DC 10–36V, suitable for various vehicle electrical systems.

  • Waterproof & Shockproof: IP69K rating guarantees resistance against high-pressure water jets and dust, ensuring durability in challenging environments

  • Multiple Video Inputs: Supports up to 4 video inputs, allowing connection to multiple cameras for enhanced visibility.

  • Trigger Wires: Equipped with 4-way trigger wires for versatile camera integration.

  • Adjustable Display: Features a removable sunshade and adjustable display angle for optimal viewing

  • User-Friendly Interface: On-Screen Display (OSD) menu with light sensor, reverse polarity protection, and multi-language support.
