7" AHD Weatherproof Quad view monitor

Description Specifications Features Reviews (0)

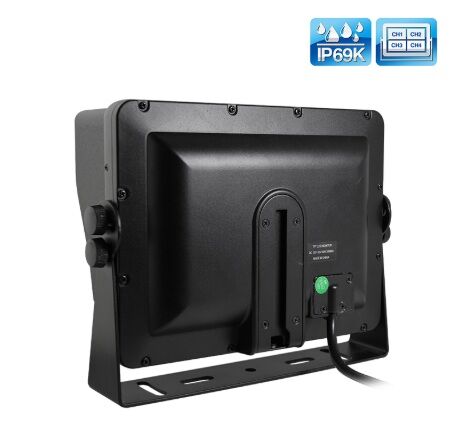

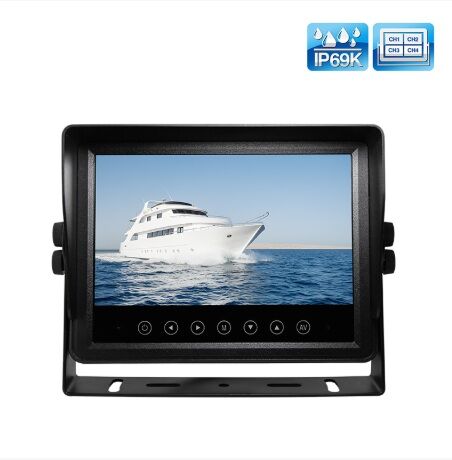

The MM7WQA is a Waterproof 12~36volt 7.0 inch AHD Quad view colour monitor.

The MM7WQA is a compact yet robust 7-inch AHD monitor designed for demanding vehicle applications. With an IP69K waterproof rating, it ensures reliable performance in harsh environments. The monitor supports up to 4 video inputs, offering versatile display options, and features a high-resolution 1024x600 screen for clear visuals. Its durable design includes a sunshade and trigger wires for seamless camera integration, making it ideal for trucks, buses, and construction equipment.

This monitor is an excellent choice for enhancing vehicle safety and operational efficiency in demanding conditions.

Our range of products can help you enhance your safety with your personal or work vehicle.

All our products are design to be installed to asisst you, as a driver you must always be responsible and check your surrounding to ensure you are operating your vehicles safely.

Screen Ratio	16:9
Back Light	500cd/m2
Resolution	1024*600
Compatible system	NTSC & PAL (automatically)
OSD control	Color, Brightness, Contrast, Volume, Language(English, Chinese, Traditional Chinese, Portuguese, French, German, Russian, Korean, Spanish, Italian, Turkish, Dutch, Japanese)
OSD control
View angel	Hor. L(60) R(60) Ver. UP(40) DOWN(60)
Image reversion	UP/Down and Left/Right
Power requirement	12-36V DC
Power consumption	5W
Storage temperature	-30〜80℃
Working temperature	-20℃ to 70℃
Size	186mm140mm32mm
Weight	1500g
AV Inputs	4 way video input, 1 way audio input (quad images,1/2/3/4 images optional） cvbs,720,1080
AV Inputs
Number of Trigger and display	4 trigger
Optional functions	Built-in speaker, 4 PIN connector suitable
Accessories	Power supply cable ,Remote control, User manual, U-Bracket

SKU	MM7WQA
Brand	mongoose

7" AHD digital panel
12~36 volt input
12 volt output to camera(s)
4 AV input switching (one with Audio)
Auto reverse trigger wire for switching when in reverse
Brightness, contrast, colour controls
Built-in sun visor hood
Built in Speaker
Heavy Duty U Frame mount
Key Features:
Screen Size & Resolution: 7-inch TFT LCD display with a resolution of 1024x600 pixels, ensuring clear and vibrant visuals.

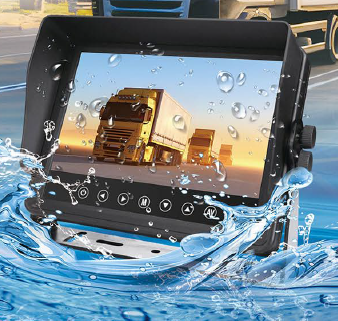

Waterproof & Shockproof: IP69K rating guarantees resistance against high-pressure water jets and dust, ensuring durability in challenging environments.
Multiple Video Inputs: Supports up to 4 video inputs, allowing connection to multiple cameras for enhanced visibility.
Trigger Wires: Equipped with 4-way trigger wires for versatile camera integration.

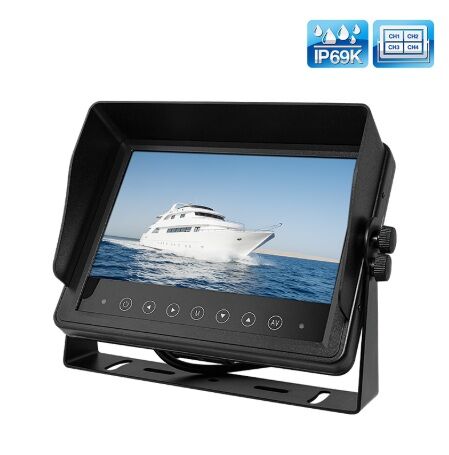

Adjustable Display: Features a removable sunshade and adjustable display angle for optimal viewing.
User-Friendly Interface: On-Screen Display (OSD) menu with light sensor, reverse polarity protection, and multi-language support.
